Technical Forums» Technical / Performance» March cup computer setup
|
GTRHOLIC » CMF Member BRISBANE Australia Member since:  Posts:  |
March cup computer setup |
Wed 14 Dec 2005 03:14:40 PM |
|
hi all, as you probably all know i bought a new computer setup for the micra. my question is that the throttle body i got with this setup does not have an afm like the standard micra throttle body. does this setup look like it bypasses this? any help would be greatly appreciated.
|
||
|
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Wed 14 Dec 2005 06:39:19 PM |
|
it doesn't have a maf?
all i can suggest is plugging it all in, and trying it, i am currently working on a mafless ecu setup, i could imagine nismo already have it sussed. if not contact the seller and ask what maf should be used, if it is mafless, by the nature of the changes made, you may find problems when driving on the street under normal conditions, and i would also get the a/f ratios checked |
||
|
NotAnotherSSS » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Wed 14 Dec 2005 07:57:10 PM |
|
Yep failing that it is possible Nismo programmed into the comptuer to read the signals from another AFM - most likely an SR20DE/T or even GTiR SR20DET AFM. Mabye even something larger like a Z32 300ZX VG30DE/TT afm.
Those are the most common used with modifying 4cyl nissan motors anyway! |
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Wed 14 Dec 2005 07:58:12 PM |
|
"if not contact the seller and ask what maf should be used"
:) |
||
|
NotAnotherSSS » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Wed 14 Dec 2005 08:40:59 PM |
|
I think he bought it through auctions, it was probably just pulled out of a wrecked racing k11 by someone, sold on yahoo to gtrholic's friend in japan and then sent to him here in australia.
I think the chances of getting a good answer would be rather slim - but thats just me being pessimistic!! :p |
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Wed 14 Dec 2005 08:43:27 PM |
|
if he had access to pull the rom i could tell him.
but the chances of that are slim |
||
|
kneival » CMF Member Southampton United Kingdom Member since: Posts: |
Re: March cup computer setup |
Wed 14 Dec 2005 11:46:31 PM |
|
Do you think it might not have consult connections etc pete?
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 15 Dec 2005 12:44:14 AM |
|
im sure it will, but i don't know if he has access to a consult connector.
an interesting point is a have seen a rom with consult code removed |
||
|
kneival » CMF Member Southampton United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 15 Dec 2005 01:00:58 AM |
|
Im just wondering how this one plugs in as it looks to be a complete re-wire? Could be utterly wrong tho! :]
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Thu 15 Dec 2005 09:58:45 AM |
|
hi all, yes it is a complete rewire. the harness is included. the computer looks different to that of a normal micra. dont know what the go is there. sorry micrapete, i really dont want to pull the ecu apart cos it has the "void if removed" nismo stickers still intact. its just for the purpose that if i wish to move it on later, i can guarantee its authenticity. ill try and take more pics. it seems to have wires hanging off here and there which i have no idea as to what they are for!
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 15 Dec 2005 06:33:03 PM |
|
no need to pull the consult apart, if you had consult cables you get the ecu that way, i wouldn't want it dis-assemble the ecu either!!
btw the ecu is the later type japanese k11 type :) |
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 17 Dec 2005 12:51:54 AM |
|
this is a "nismo k11 N1 kit",but not included the tb body..
the tb comes from nissan p10 or p11(sr16/20). if you want to use that,you have to find a afm from any sr16/20 engine , it's not only for N1 , anyone if you like,youcan swap your tb from sr20 !! |
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 17 Dec 2005 12:52:36 AM |
|
afm...
|
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 17 Dec 2005 12:54:10 AM |
|
afm part ...
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sat 17 Dec 2005 11:48:51 AM |
|
AWESOME PICS LEWIS! Where did you get those pics from? what is the diameter of the sr16/20 afms? they are the same right? do you know the diameter of the throttle body? i'll have to measure mine. do you know much about the injectors? my injectors look the same as the ones in your picture. the pink ones. i was only told there was 1500cc worth of injectors. im assuming that means 375cc each?
|
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 17 Dec 2005 04:54:24 PM |
|
hi GTR :
the dia. of sr16/20 are both 70mm,and your inj. volume is 185cc(but someone said 240cc) |
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 17 Dec 2005 05:00:34 PM |
|
they told u "1500cc" means from "ga15 1500cc" eg. not for your injector !!
1500cc/4=375cc<---each cylinder volume!! |
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sun 18 Dec 2005 01:31:19 AM |
|
That makes a lot of sense lewis. hmmm... do you have any more pics of the n1 k11's? are the sr16 and sr20 afms calibrated the same? does the existing plugs, plug straight in? or does the wiring have to be modified?
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sun 18 Dec 2005 01:32:46 AM |
|
if i got the numbers off the throttle body, will you be able to tell me exactly what its from? the distributor has some numbers on it too. can you tell me where that came from?
|
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Tue 20 Dec 2005 12:31:57 AM |
|
sorry GTR, i've measured the sr20 tb inside dia. should be 60mm,not 70mm, but i remember there were 70mm tb , maybe sr20det or something....
the afm will need to be calibrate if u want use it on cg13 ecu, but not too much different, it's all 5v signal !! ofcourse if u can post some pics and i'll do my best !! |
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Tue 20 Dec 2005 12:37:06 AM |
|
and this link might help...
http://www.h5.dion.ne.jp/~you-web/sr20throttle/index.html |
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Tue 20 Dec 2005 01:04:11 AM |
|
airflow map will need changing, k value will, plus some other limits, if you want to change to sr maf
|
||
|
NotAnotherSSS » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Tue 20 Dec 2005 08:20:43 AM |
|
lewis - i think the sr20det tb were actually smaller in diameter than the sr20de tb.
70mm tb might be from an sr20ve, or an S15 sr20det. |
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Tue 20 Dec 2005 10:49:01 AM |
|
hi lewis and all, the setup is at my friends place at the moment, ill bring it home and take some more detailed pics. but from what i can remember, it looks like the throttle body on the bottom (throttle body pic) it has a triangular shape.
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Tue 20 Dec 2005 11:12:54 PM |
|
can you get any numbers / info from it you can, the issue may be the maf may be a completely different one from the throttle body, have you tried it without a maf? is there any odd bits of wiring loom?
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sun 08 Jan 2006 11:56:38 PM |
|

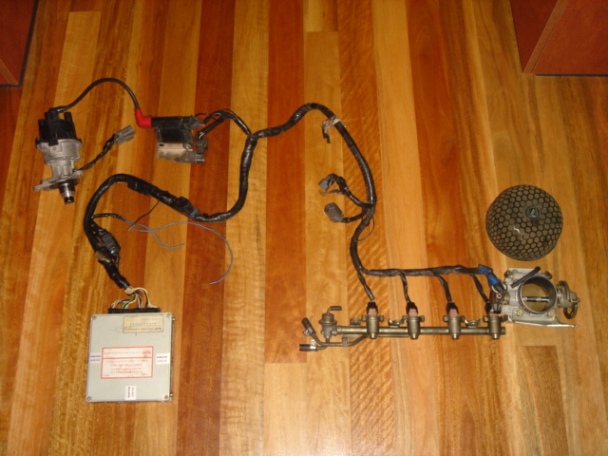

i have the kit now. sorry it took me so long to get pics. please help me decipher it all! id love to get it installed. first pic is how i think it goes together.
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sun 08 Jan 2006 11:57:28 PM |
|

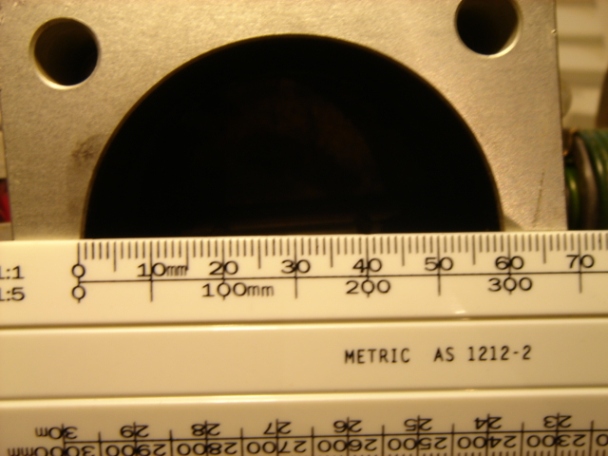

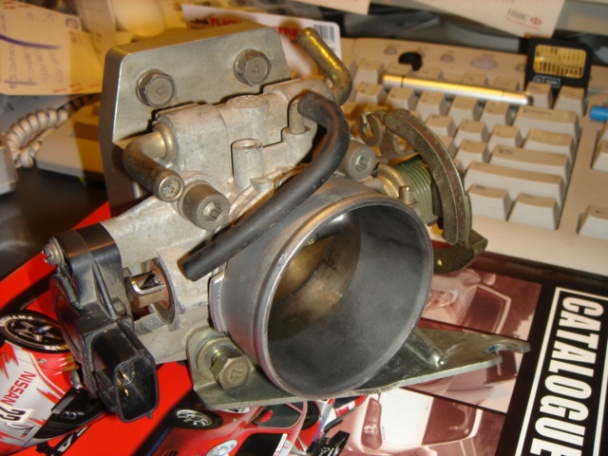

throttle body pic 1 of 3
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sun 08 Jan 2006 11:57:54 PM |
|

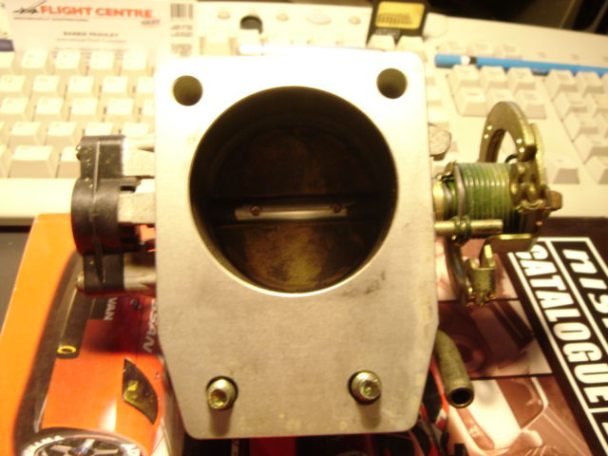

throttle body pic 2 of 3
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sun 08 Jan 2006 11:58:20 PM |
|
thottle body pic 3 of 3
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sun 08 Jan 2006 11:59:46 PM |
|

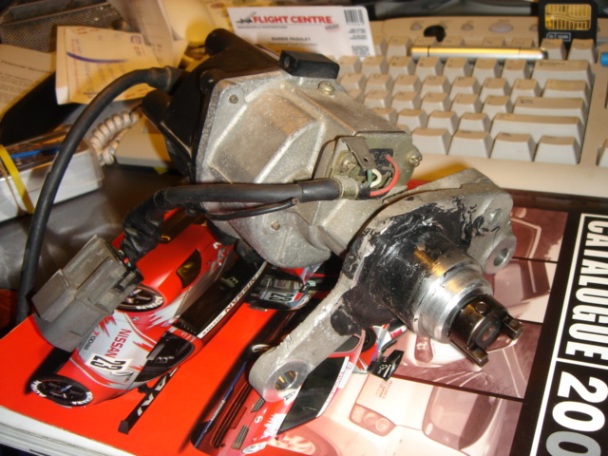

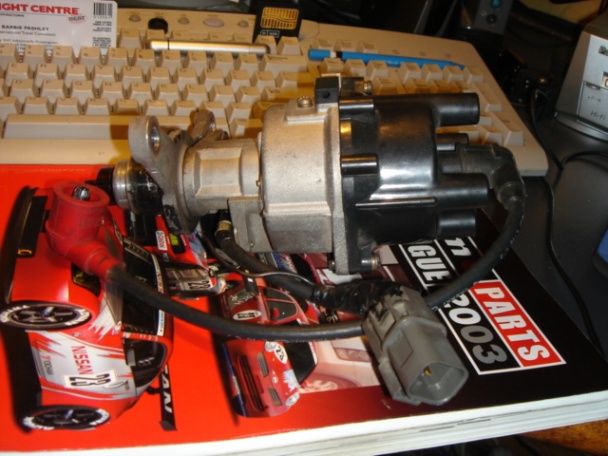

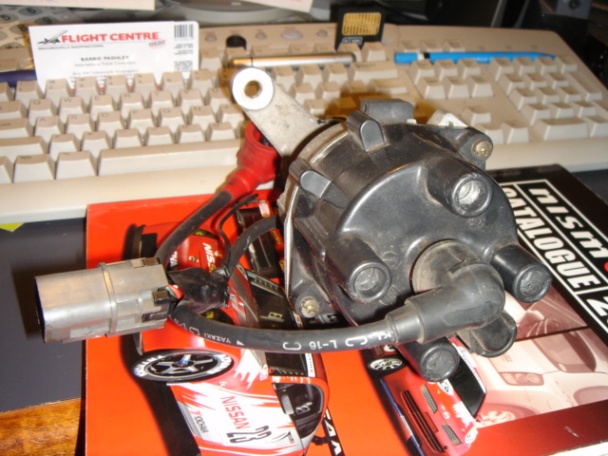

dizzy 1 of 4
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:00:12 AM |
|
dizzy 2 of 4
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:00:53 AM |
|
dizzy pic 3 of 4
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:02:12 AM |
|
dizzy pic 4 of 4 part number
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:04:10 AM |
|

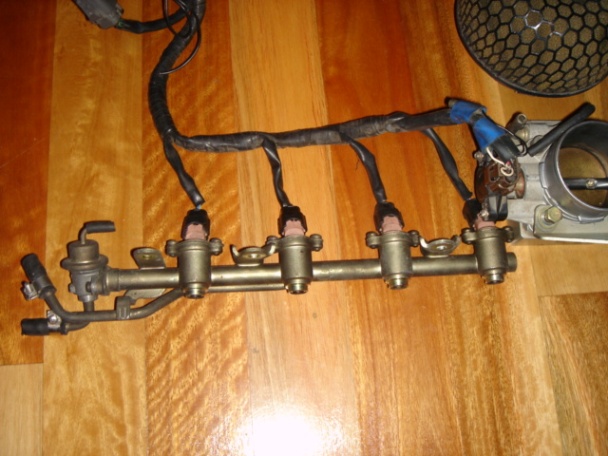

fuel rail and throttle body link.
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:09:25 AM |
|

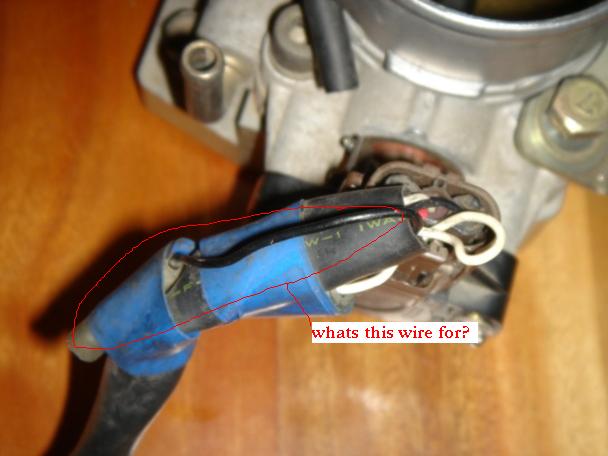

here is a wire on the harness that connects to the throttle body. it has a female connector on the end. the wire is black. could it be an earth?
|
||
Image Attached:
|
||
|
kneival » CMF Member Southampton United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:12:11 AM |
|
Crazy, the dizzy needs a spark generator (has 5 HT plugs), looks like its not done within the dizzy, perhaps its an old rotor type thing, wonder what their reasoning is for doing it like that? Looks like you have the generator tho!
Does the dizzy plug into the loom? I wonder how big those injectors are! Hope you get it all working. |
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:12:34 AM |
|

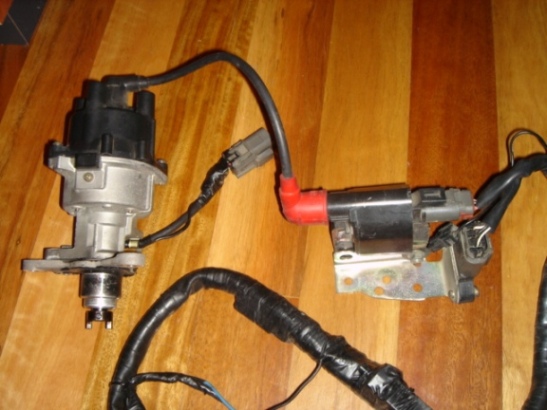

coil pack and dizzy
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:13:48 AM |
|

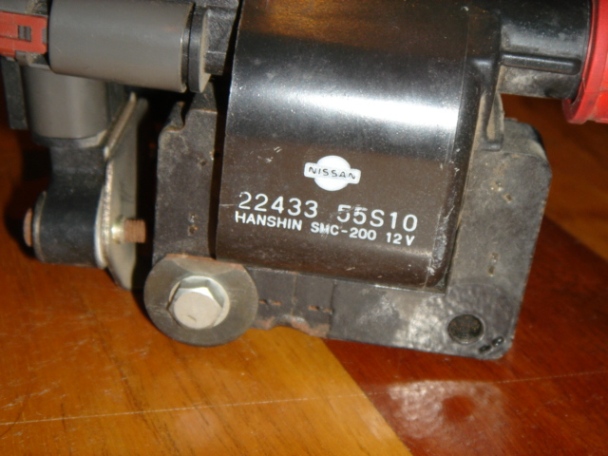

coil pack code number.
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:14:37 AM |
|
yes the dizzy does plug into the loom. the next pic will show you.
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:18:08 AM |
|

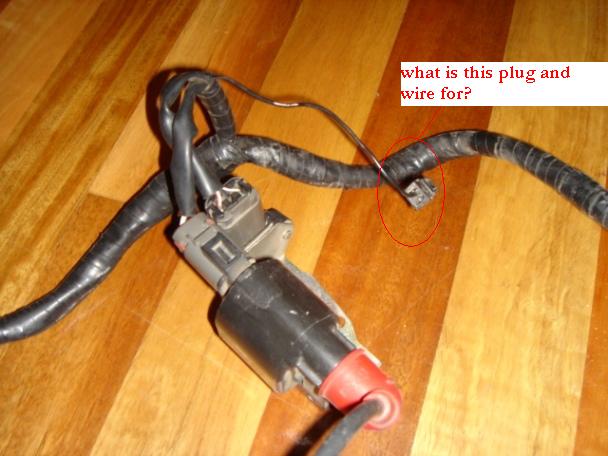

the dizzy plugs into a plug on the main harness. next to it is another plug. what is that one for?
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:22:05 AM |
|
kneival, what is a HT plug? this is another pic of the coil pack and theres an extra wire dangling off it. it has a plug on the end. earth maybe? wire is black. heheheh im assuming all black wires are earth!
|
||
Image Attached:
|
||
|

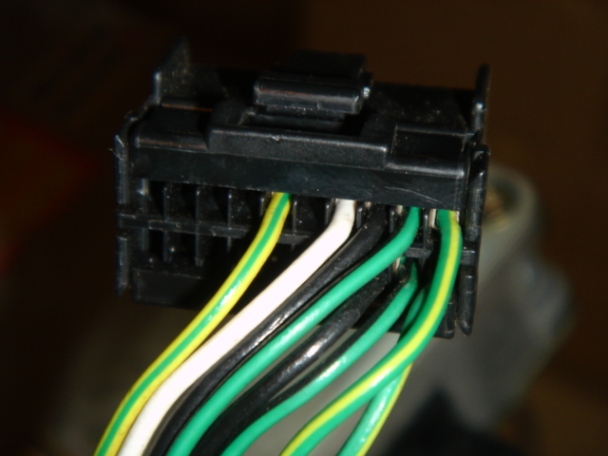

GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:24:57 AM |
|

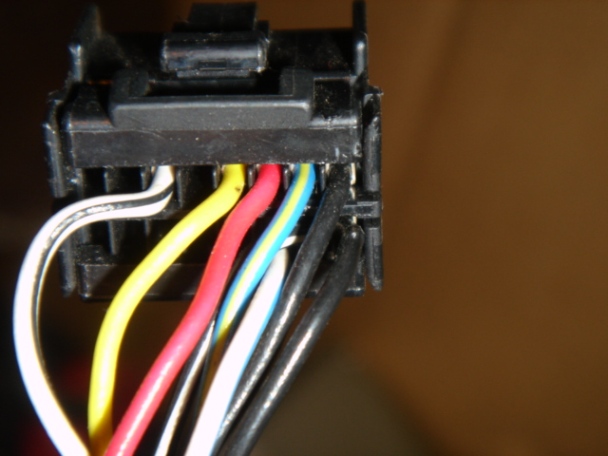

any ideas?
|
||
Image Attached:
|
||
|

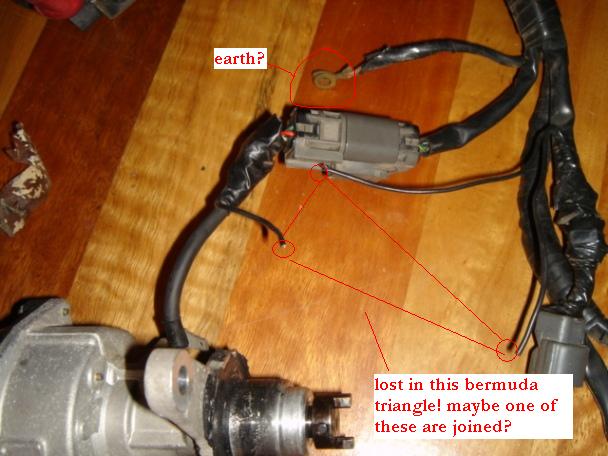

GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:29:40 AM |
|
i wish they didnt just cut the wires.
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:31:27 AM |
|
thats all folks. if you feel more pics would help me solve this jigsaw puzzle, please just ask! ill take some more asap. thanks all in advance!
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 12:32:36 AM |
|
oh, lewis, can you tell me what kind of throttle body that is? and what afm i will likely need to buy? does the hks air filter go on top of the throttle body?
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 01:00:56 AM |
|
just found out that the coil pack is from a p10 primera. i still cant find what the dizzy is from though.
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 03:05:51 AM |
|

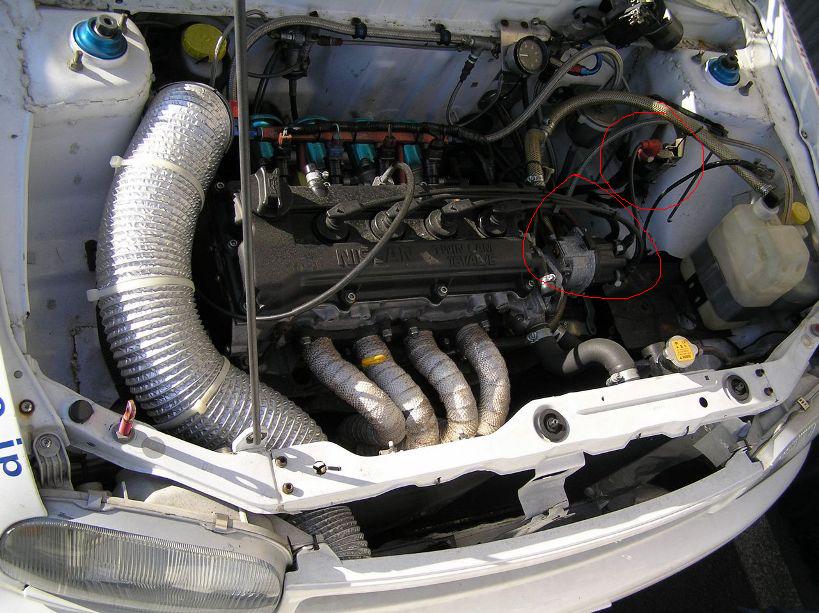

hmm... the dizzy and coil pack kinda resemble the one in this pic.
|
||
Image Attached:
|
||
|
kneival » CMF Member Southampton United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 04:47:06 AM |
|
Do you have a multimeter at home? You could bell those wires to see if they are connected, if they are then they are all earths!
By HT I just mean the high voltage lead. Best of luck with this and keep us informed! Very interested to see the results. |
||
|
Alex_B » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:01:28 AM |
|

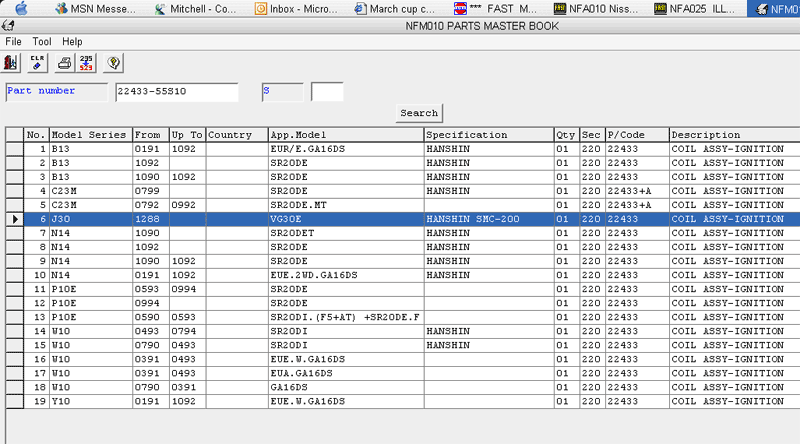

lots of variants, the VG30 one has teh SMC-200on it though ??? will try and figure out the Dizzy for ya,
Alex |
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:26:14 AM |
|
thats awesome! is that the nissan fast program? i have the japanese version only. the english version i have resets all the time. where could i get a copy?
|
||
Image Attached:
|
||
|
Alex_B » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:50:53 AM |
|
i have the Euro version dated A1-06/2003 installed. But i also have discs A1 A2 A3 B1 B2 EL1 EL2 ER of the older version which has the Japanese / JDM models i think. But i have uninstalled those currently, i'm guess your using the JDM version? so there is no point in me installing the JDM version. That part number for the dizzy dosn't come up in the euro FAST program. But the first sequence of letters is common to most GA16 or SR20/DE/DET/DI, Juat the last digits don't match anything,
Alex |
||
|
Ghetto Micra » CMF Member Perth Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 04:43:08 PM |
|
I have four of those coils sitting at home. They are common on the australian FWD SR20.
Extra wires.. the one with the eylet clearly looks like an earth, esp crimped up like that. the first thing I would do would be dismantle that loom completely, and check which pins each wire goes into on the ECU, it's not hard, It's just time consuming. you can always re-tape the loom back up later. Does the K11 have a oil pressure sender wire? (that will be a single wire usually with plug on it)... easiest way is just to dismatle the loom and check the pinouts, will save you a lot of probs. unless the computer has somehow been modified for map sensor input (highly doubt it), then you need to get yourself an AFM, there's a few different regular SR20 AFM's too (much like the ones in the above pics). It seems the setup requires that the AFM sit before the TB, say, where the pod filter would be. again like that pic above. most GA16/SR20's are all like this afaik. fun fun fun |
||
|
Ghetto Micra » CMF Member Perth Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 04:50:34 PM |
|
that other plug next to where the dizzy plugs in could be exhaust (O2) sensor.. hrmmm.
there's bound to be O2, water, injector, ign, oil press.. etc |
||
|
Yom » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 05:27:42 PM |
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 06:36:23 PM |
|

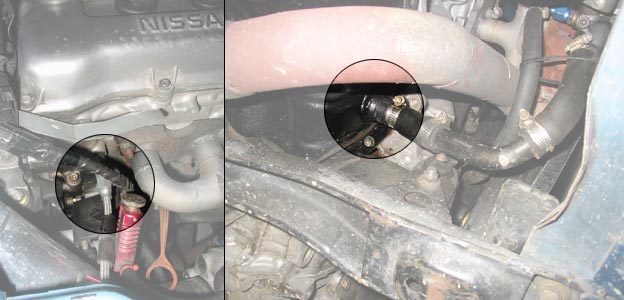

ghetto micra, is this the plug you are talking about? the oil pressure sender wire?
http://micra.com.au/images/community/forums/10219.jpg the other plug i will check out for the o2 sensor. would it matter a lot which afm i choose? sr20 or sr16? |
||
|
Alex_B » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 07:16:59 PM |
|
my brother has a 4g63 mitsu loom and computer here. Rather than disassemble the loom, he just hooked up the 12v from a spare battery and then used a multimeter to find out what was what. just be sure you put some tape on each wire/plug adn write what it is on the tap.
Alex |
||
|
Yom » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 07:31:06 PM |
|
gtrholic - do you know what the pinouts on the Nismo ECU are?
If you can get a diagram of the connectors and what each pin does it will be a pretty easy job. |
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 08:26:20 PM |
|
normally i would expect to see the ecu as a direct replacement, some of the more complicated ecu's i have seen however are not this simple, but usually come with a loom adapter, i very much doubt you will be able to get a pin out for the nismo ecu to confirm its standard k11, but i would assume it is.
another problem is the extra wiring, do you know its all there? i doubt it will be an easy fit, and ideally you need to get in contact with someone who removed / fitted this to ensure it all goes back together. another problem could be ecu compatibilty, that ecu is the japanese later model ecu, if your original ecu is an early model, then there is loom differences, ie not ecu loom but wiring loom, this can cause issues another issue is what airflow metering it uses, i know some japanese tuners who can convert to throttle position rather than maf, and some who change to map, some can even use both! but even if it is maf, it could be a choice of many afm, sr20 det z32..... |
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 08:28:08 PM |
|
can you take a close up of the ecu wires?
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:19:37 PM |
|

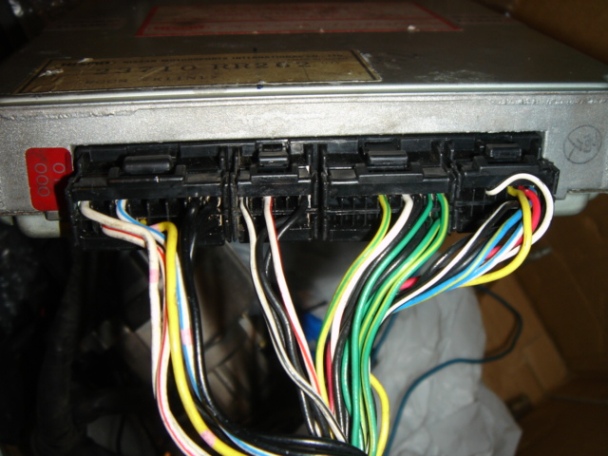

here are some pictures of the wires. there are four plugs. left to right.
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:20:54 PM |
|
4 plugs
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:22:05 PM |
|
plug 1 on the left
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:22:48 PM |
|
plug 2
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:23:42 PM |
|
plug 3
|
||
Image Attached:
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:24:52 PM |
|
plug 4
|
||
Image Attached:
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 09:38:50 PM |
|
thats not any uk type spec, so its certainly late k11 japanese spec, or perhaps a varient.
what type ecu do you have in the car at the minute? is it the type with the screws on the side or top? year / model |
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:26:02 PM |
|
its just a standard ecu. do you think i will have lots of problems being a late model ecu?
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:28:54 PM |
|
its the small looking one. its a 95 model lx. will i have a lot of problems even though i change the loom? are there differences in the engine in early and late model cg13's?
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:37:44 PM |
|
the thing that would concern me is you have set of wires on the ecu plug, the normal cg plug has about 50 inputs / outputs, you have about 30 on yours, and that doesn't look like a full loom to me, i would unwrap all the wires and check they all connect to something, i think is this is ment obviously for a race series, which would be completely striped of anything not needed, and the normal loom has been completely removed and replaced with this, with only whats needed, but i personally think some things may be missing.
the late and early ecus are different, and the wiring to them is, this is the case on both the uk early and late, and the japanese early and late. check all the pins go somewhere, try and let us know what is attached to where and what isn't, and i'll help you out as much as i can. is there no way you can open the ecu, i may be able to tell if its based on the normal cg ecu, or something else. |
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:51:07 PM |
|
it would be nice if i was cluey about this sort of stuff. hmmm... do you think i can keep my aircon? if i cant, i probably wont bother fitting it! i need my a/c! what other things do you think they would have gotten rid of?
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:54:30 PM |
|
i doubt it, but who know, i need more info before i can help more
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:56:55 PM |
|
i was just talking to alex, and he suggested that maybe i could run 2 ecu's? one for the motor and one for the accessories. is this possible? sounds doable.
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 10:59:47 PM |
|
perhaps, it would require some extensive wiring, plus when you use your aircon, the ecu varies various setting, these would obviously be defunct, plus you dont know when the nismo map is like, i'd be wary about running anything but the nismo ecu as it should be
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 11:12:48 PM |
|
this is starting to lose its appeal. 2 harnesses maybe? hehehe
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 11:14:18 PM |
|
my advice is strip the car, use the nismo ecu, and kit, get a good manifold, good suspension and grin from ear to ear
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 11:16:58 PM |
|
never thought of it that way.... but er...hmmm.... i kinda bought this car to drive daily!
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 11:18:54 PM |
|
i bought an impul manifold so that i wouldnt have problems with it hitting the a/c. now i got this bloody nismo ecu that does away with the a/c altogether! great planning.
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Mon 09 Jan 2006 11:20:34 PM |
|
pete are you on msn messenger? would love to chat to you. christopherwong@email.com is mine.
|
||
|
Yom » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Tue 10 Jan 2006 08:53:34 AM |
|

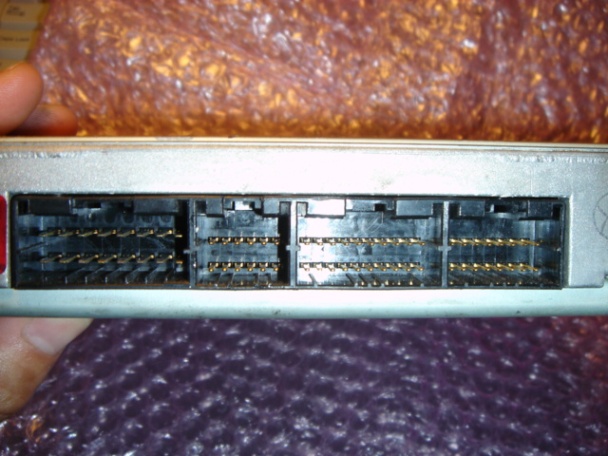

GTRHOLIC, how does the plug on the nismo ECU compare to that of the standard ECU?
No chance of plug and play? |
||
Image Attached:
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Tue 10 Jan 2006 08:19:45 PM |
|
standard ecu plug, for the early k11's is two rows of 9-8-7-8 pins, where as that is two rows 8-6-10-8, and its the revised ecu type, which has a different pin layout anyway.
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Wed 11 Jan 2006 02:35:02 AM |
|
hmmm... i was just thinking, if i need to buy an afm for this setup, where do i plug it into? shouldnt there be a plug on the harness?
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Wed 11 Jan 2006 07:47:49 PM |
|
i would have though, perhaps im right, it runs on throttle position
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Wed 11 Jan 2006 10:56:17 PM |
|
what does that mean?
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 12:53:10 AM |
|
some japanese ecu tuners can remove the maf sensor completely, so the ecu uses the throttle position sensot (tps) to calculate load, i have nearly got this working myelf, so i am sure nismo could do it.
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:01:52 AM |
|
having said that... do i still need an afm?
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:08:23 AM |
|
if they had converted it to throttle position, no
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:08:58 AM |
|
can i get a good picture of the top sticker
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:11:42 AM |
|

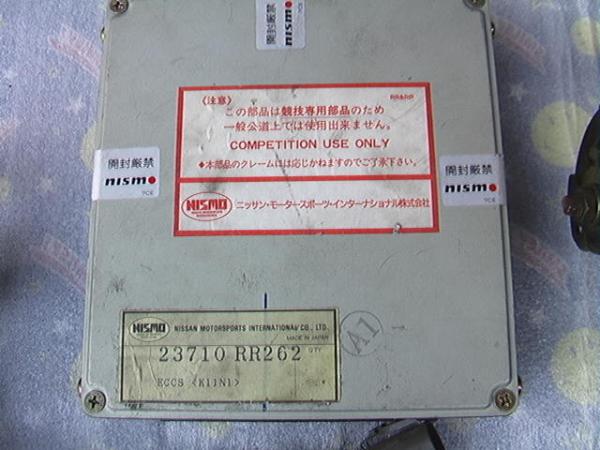

top
|
||
Image Attached:
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:23:25 AM |
|
new number on me, and it there no way of opening it without breaking the seal?
|
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:37:17 AM |
|
hey pete... i just read the japanese description again.... it says that the harness has been modified to keep the aircon! does it look like it has been done?
|
||
Image Attached:
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:39:29 AM |
|
really! what are you waiting around for then?
|
||
|
Ghetto Micra » CMF Member Perth Australia Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 01:29:22 PM |
|
does it even matter if you break the seal? it's not like you can return the ECU for warranty right?
I'd be busting that open and seeing how it's been modified (daughterboard) and go from there. get it to my local rom tuner to dump the map off it and analyse what's been done to it (afm? no afm, etc).... then I'd build a new wiring loom from scratch, with only what you need included in the wiring. it's neater, and gives you piece of mind. you can do it :) |
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 02:38:51 PM |
|
ghetto, you have a point and youre totally right. however, its not so much the warranty im concerned about, its just that if i were to pass it on to anyone, i could verify its authenticity. i really dont know if this will be the computer for me as yet. if i decide its not, i would move it on, and i suppose unbroken seals would be a selling point. i know what you mean though. i so want to break them open too! the loom looks factory though. its not really that untidy. i just got to know what the loose wires are for, thats all.
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 06:30:43 PM |
|
if its daughterboard id be happy to take a look though, id see what load sensoring device it uses, id even transfer the rom onto a standard ecu like yours if you wanted... for the cost of the board, or take it to a tuning shop who can do nissan rom tuning.
|
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 07:20:48 PM |
|
btw , the loom isn't factory, not for your year k11 anyway
|
||
|
kneival » CMF Member Southampton United Kingdom Member since: Posts: |
Re: March cup computer setup |
Thu 12 Jan 2006 09:00:36 PM |
|
Take the seals off and remove any trace of them. they were never there, what pictures of them? I didnt see anything... :-D
|
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 01:07:10 AM |
|
there is a series question GTR...
do u drive ur k11 daily? if yes , i'll suggest u forget this set !! if not and just want ur k11 a monster , that's ok !! but you'll need some parts more: 312deg/in 280deg/ex ,8.35mm cam shaft nismo forged piston/rod >=10000 rpm balanced crank shaft 0.5mm nismo gasket...... idle will more then 2000rpm on this set won't need o2 sensor and maf, the harness on coil is for tach meter,but other i'm not sure cause it's not design fo "ROAD" neither for sale !! |
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 01:11:16 AM |
|
and the dizzy should comes from "SUBARU" !!
key "d4p84" on yahoo and search |
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 01:16:43 AM |
|
if u can check thease unknow wire to which pin on ecu bay by multi meter maybe i can tell u where to go ...
best regard lewis |
||
|
micra_pete » CMF Member United Kingdom Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 02:11:40 AM |
|
"on this set won't need o2 sensor and maf, the harness on coil is for tach meter,but other i'm not sure cause it's not design fo "ROAD" neither for sale !!"
thought so |
||
|
GTRHOLIC » CMF Member BRISBANE Australia Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 10:55:53 AM |
|
hi lewis! so glad to hear from you. i sent you a mail before but no reply! the dizzy does have a nissan emblem on it and a part number.
http://www.micra.com.au/images/community/forums/10211.jpg can you read japanese? if so, here is the description for the march cup computer when i got it. K11 マーチ ニスモ製コンピュータ、BIGスロットル、デスビ、プラグコード、専用ハーネス、 1500cc？用インジェクタのセットです。マーチカップに出場していた車両（1000cc)から取り外し、1300ccのマーチで通勤改速として使用してました。配線を加工して、エアコン等ノーマル部品が使えるようにしてました。BIGスロットルですがノーマルより低速からのトルク感が違います。もちろん上もノーマルとは全然違います。取付けはノーマルの水廻りを直結にする等の加工が必要です。エアクリーナーはHKS製でフィルターの交換時期です。インジェクターは1500cc用と聞いてますがよく分かりませんのでおまけと思って下さい。1000ccに付いていたので1000ccにも取付けは出来ると思います。取付け後はマフラーからの音も変わり、パワー、トルク感等かなり満足できると思います。レブの回転数はよく分かりませんがかなり高いと思います。取付けにはそれなりの知識と技術が必要です。レース用の部品で中古品の為、ノークレーム、ノーリターンでお願いします。神経質な方、新品をお望みの方は入札を控えて下さい。 there is a wire hanging off the harness which is marked tachometer. which wire were you talking about? were you talking about this one? http://www.micra.com.au/images/community/forums/10219.jpg the owner previously said he had it working with his normal march and said it made improvements. this is so confusing! |
||
|
Ghetto Micra » CMF Member Perth Australia Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 09:51:51 PM |
|
so you dont wanna open the ECU. okay. you need to strip the loom down to ea wire. label them, document them, whatever. you need to get the pinouts for that ECU, badly. once u have pinouts, you are SET !
|
||
|
Yom » CMF Member Brisbane Australia Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 10:25:43 PM |
|
Have you looked into getting a whole japanese k11 engine bay loom sent over?
|
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 11:44:29 PM |
|
sorry GTR, i did'nt got ur e-mail so i don't know u r looking for me ....
i do'nt think the mark on dizzy means "nissan", that should means "hitachi"....made by hitachi... and the harness on pic 019 should be tachometer..... i'll send u some mail on good resulation pics on eccs diagram soon.... i do'nt have a msn id but have a yahoo messenger id lewis_liu.tw is my id , hope can help u a little... |
||
Image Attached:
|
||
|
lewis » CMF Member florance United States (USA) Member since: Posts: |
Re: March cup computer setup |
Sat 28 Jan 2006 11:56:52 PM |
|
by the way...
can u findout a "AAC" valve on this set ?? the last owner said it came from a k11 1000cc race car, but he put it on 1300cc and runs good, the injector comes from ga15 1500cc engine ,do'nt know the rev limit and need some tuff guy to wiring, and think about there have "NO" guarantie --->that means he(she) have no wiring diagram either !! |
||
