Newbie turbo water and vacuum line questions

Sun 09 Nov 2014 04:46:12 PM
Hey people, I'm in the process off trying to figure out this turbo stuff and had some newbie questions.

First is the water lines for the turbo. Do I tee off the heater hoses for a feed and return. Or is there a better place to get it from around the thermostat?

Second is the vacuum lines for the Wastegate and bov. I noticed in the back of the block a plastics fitting with two vacuum lines, can I tee off these? Or do u need to find one on the manifold?

Any help would be much aappreciated.
frank2
» CMF Member

birmingham
United Kingdom

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Forum addictForum addictForum addictForum addictForum addict

Re: Newbie turbo water and vacuum line questions

Sun 09 Nov 2014 06:19:06 PM
those 2 pipes go to the carbon canister purge valve TM, so they only see a venturi vacuum (near the throttleplate, ie, not manifold vacuum)
you can link all of your pipes to a log if you want, boostgauge/bov/fuel-reg/actuator etc (or else tee into any of those)
and the heater hoses will have no flow if the heater is turned to cold, but i have never run water cooling in any of my set-ups anyway
TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Sun 09 Nov 2014 08:48:39 PM
Cheers frank2. I think the log will be the go as I forgot about a boost gauge too.

Ok I though you had to run water lines, but after a quick Google search what do ya know.
frank2
» CMF Member

birmingham
United Kingdom

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Forum addictForum addictForum addictForum addictForum addict

Re: Newbie turbo water and vacuum line questions

Sun 09 Nov 2014 09:15:34 PM
you probably need the water lines on a scoob or whatever, if the turbo is confined in a tight corner with no airflow eh, but you are dumping a lot of exh mani heat into the rad tho.
mine has a flange ally welded to the compressor housing, and a big ally heatsink bolted to it, and that helps with the heat buildup and some intercooling effect too

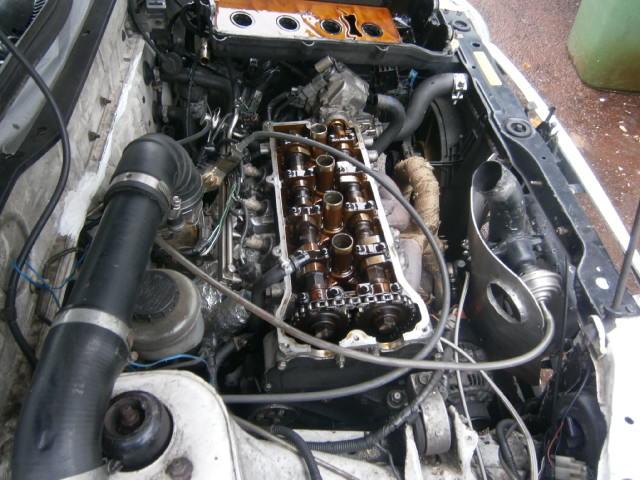

Image Attached:

TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Sun 09 Nov 2014 09:53:02 PM
That's cool. Hmmm might see how I go with out the lines. Could go an oil cooler, that should help.
You couldn't get away with non intercooled in summer here. It can get to 45 degrees :)
frank2
» CMF Member

birmingham
United Kingdom

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Forum addictForum addictForum addictForum addictForum addict

Re: Newbie turbo water and vacuum line questions

Mon 10 Nov 2014 07:12:16 PM

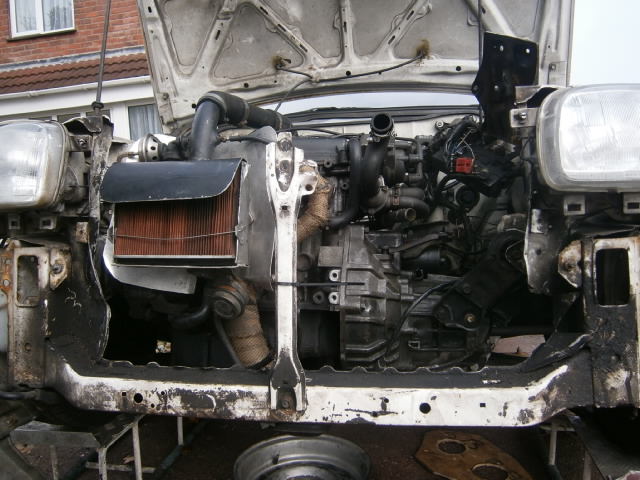

here,s the back of the heatsink, my compressor temp reaches 50 deg 5 mins after turning the engine off (the heat from the turbine travels across the core eh) and it reaches 30 to 40deg in heavy traffic too, but while moving its running at near enough ambient temps.
what boost level will you be running ?



Image Attached:

TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Mon 10 Nov 2014 08:43:47 PM
Ok. I plan on running the t25 at the wastgate pressure of 7/8psi.
frank2
» CMF Member

birmingham
United Kingdom

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Forum addictForum addictForum addictForum addictForum addict

Re: Newbie turbo water and vacuum line questions

Mon 10 Nov 2014 09:28:31 PM
sounds good :) these things are bulletproof at those levels, i doubt if half a bar will create much heat tbh, your summer ambient temps are a big worry tho eh !
TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Tue 11 Nov 2014 09:31:05 AM
Cheers that's what I'm hoping for. And yer summer. The plan for that is to run the factory jza80 supra cooler, alloy rad with thermo and get windscreen washer jets of a wreck and run them at the intercooler and radiator. So I know the engine should stay cool.
TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Tue 11 Nov 2014 05:38:03 PM
So had a mess around this arvo, first it looks like the intercooler won't fit cos it's so thick. No biggie.

And still thinking bout these water lines. Correct anything that's wrong please.

Line 1 feed: Because it's after the thermostat this would give it coolant all the time. And it's before it goes through the engine so it would be cold.

Line 2 drain: Because it goes to the lower radiator hose, so should be dumping it back into the radiator.

Or with line 2. I think that hose it where the coolant bypasses the rad when cold, so would they force against each other?
frank2
» CMF Member

birmingham
United Kingdom

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Forum addictForum addictForum addictForum addictForum addict

Re: Newbie turbo water and vacuum line questions

Tue 11 Nov 2014 07:13:59 PM
those are both outflow pipes tho surely ? (the heater feed, and the system return if the stat is closed)
if you feed the turbo from an engine outlet/downstream pipe, you will be heating the turbo core to 100deg c effectively
feeding it from the coldside from the rad would be better, but you would have no flow control without a separate pump tho
TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Wed 12 Nov 2014 11:45:56 AM
Ok cheers so much for your help. The oil and vacuum has been easy to figure out, this darn water stuff. A few of my friends have factory turbo car's skylines supras etc. And they run of the water pump. Might have to have a look at how they are set up. And get back to you on this.
TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Wed 12 Nov 2014 11:51:09 AM
And dumb question, the coolant comes out the engine to the bottom radiator hose, up the rad and back into the engine through the top hose. Or do I have this backwards.
frank2
» CMF Member

birmingham
United Kingdom

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Forum addictForum addictForum addictForum addictForum addict

Re: Newbie turbo water and vacuum line questions

Wed 12 Nov 2014 06:32:04 PM
TurtleMan WROTE:

"And dumb question, the coolant comes out the engine to the bottom radiator hose, up the rad and back into the engine through the top hose. Or do I have this backwards."


no, out of the bottom of the rad TM, and most turbo cars do probably feed the turbo with heated coolant, in order to try and keep it at 100deg max (where the turbine end probably reaches 2-300)
but if you can keep the compressor end at near ambient temp, then that is preferable to maintaining the whole turbo core at a constant 100deg via the coolant eh :)
TurtleMan
» CMF Member

Adelaide
Australia

Member since:
Long time memberLong time memberLong time memberLong time memberLong time member

Posts:
New to forumNew to forumNew to forumNew to forumNew to forum

Re: Newbie turbo water and vacuum line questions

Wed 12 Nov 2014 06:43:30 PM
Haha yer I just got my trusty manual. Been doing a bit of googling and it is more for the turbo cool down, but also helps when the turbo's 1000 degrees. And most people tee off or just get rid off the throttle body cooling. Looks easy enough.
frank2
» CMF Member

birmingham
United Kingdom

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Forum addictForum addictForum addictForum addictForum addict

Re: Newbie turbo water and vacuum line questions

Wed 12 Nov 2014 06:57:08 PM
aye, its a throttle body "heating" circuit tho eh :)
the core itself will only reach 200ish deg, any more than that will boil the oil inside it and melt the oil pipes
