exhaust manifold |
Thu 25 Apr 2013 10:08:56 AM |
|
does anyone in aus have a frankspeed manifold for sale?
regards gary |
||
|
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: exhaust manifold |
Thu 25 Apr 2013 05:38:44 PM |
|
i can send a fillet piece if you want to diy yours gary ? :)
|
||
|
hotfunk67 » CMF Member Sydney Australia Member since: Posts: |
Re: exhaust manifold |
Thu 25 Apr 2013 06:14:34 PM |
|
frank2 WROTE: "i can send a fillet piece if you want to diy yours gary ? :)" I'd be up for one of those Frank. What do I need to do? |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: exhaust manifold |
Thu 25 Apr 2013 11:07:49 PM |
|

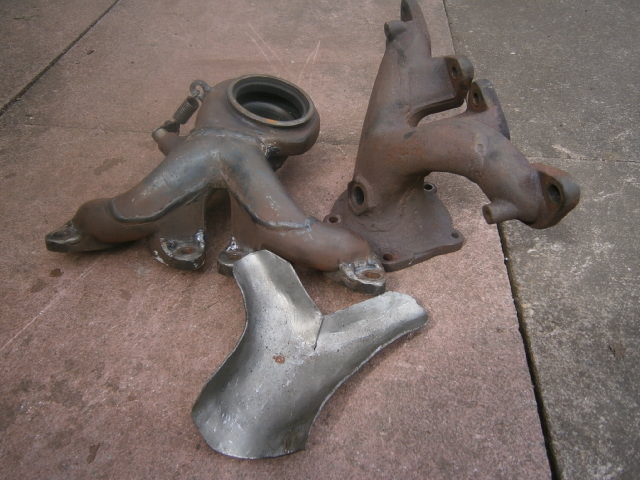

hotfunk67 WROTE: " frank2 WROTE: "i can send a fillet piece if you want to diy yours gary ? :)" I'd be up for one of those Frank. What do I need to do?" you unscrew the lambda insert then mark around the 2mm thick fillet piece mate, then cut the front away with a grinder (leaving a 10mm overlap) then weld it on and weld the lambda boss/insert back wherever you want it (on the side for a mini, or in the downpipe for a turbo) :) £10 + post i guess, a fuelrail was £8 airmail recently, this would be about half that maybe ? |
||
Image Attached:
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: exhaust manifold |
Thu 25 Apr 2013 11:14:30 PM |
|

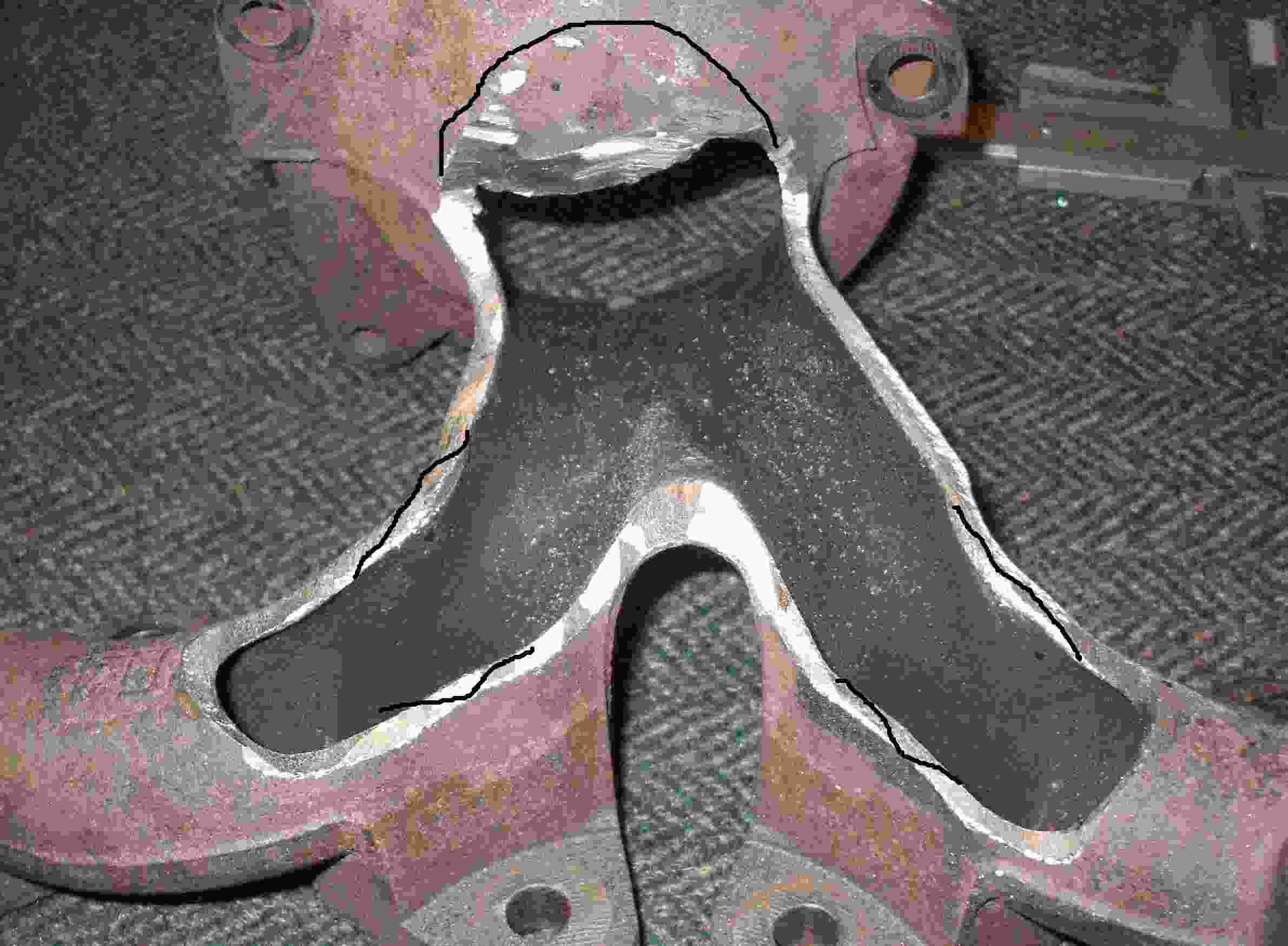

there,s 2 fairly tight bottlenecks where it goes 4 into 2 (arrowed) and it opens up the cat entry area too :)
|
||
Image Attached:
|
||
|
miniman » CMF Member sydney Australia Member since: Posts: |
Re: exhaust manifold |
Sun 28 Apr 2013 06:38:40 PM |
|
hi frank!
do you need to do any other internal work? ie opening up the inside? regards gary |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: exhaust manifold |
Sun 28 Apr 2013 11:58:52 PM |
|
miniman WROTE: "hi frank! do you need to do any other internal work? ie opening up the inside? regards gary" i usually open the sides a bit (feather the edges) and open the cat entry bit gary :) |
||
Image Attached:
|
||
|
miniman » CMF Member sydney Australia Member since: Posts: |
Re: exhaust manifold |
Sat 04 May 2013 10:05:44 AM |
|
i dont know what my welding skills will be like frank!
but if you accept paypal i will take a fillet piece off you regards gary |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: exhaust manifold |
Sat 04 May 2013 04:16:02 PM |
|
no probs gary :)
i,ll check my junk mail |
||
|
hotfunk67 » CMF Member Sydney Australia Member since: Posts: |
Re: exhaust manifold |
Mon 06 May 2013 11:52:38 AM |
|
miniman WROTE: "i dont know what my welding skills will be like frank! but if you accept paypal i will take a fillet piece off you regards gary" +1 |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: exhaust manifold |
Tue 07 May 2013 11:48:41 PM |
|
i just got quoted £7.55 airmail guys (half the size of the CGA rail, but £1 less ??)
|
||
|
miniman » CMF Member sydney Australia Member since: Posts: |
Re: exhaust manifold |
Thu 09 May 2013 07:12:01 PM |
|
lets go frank!
i will pm you with my paypal id so you can send me an invoice regards gaz |
||
