Technical Forums» Technical / Performance» valve clearences and how to
|
k11.3tc » CMF Member Spain Member since:  Posts:  |
valve clearences and how to |
Sat 02 Mar 2013 09:10:23 AM |
|
i want to set the valves in my CG13DE monster.
How do i do that and where can i find info about that ? Thanks in advance |
||
|
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: valve clearences and how to |
Sat 02 Mar 2013 09:24:08 AM |
|
they are a bucket and shim design, have you measured yours ?
|
||
|
Danvillan » CMF Member Mulgoa Australia Member since: Posts: |
Re: valve clearences and how to |
Sat 02 Mar 2013 08:26:04 PM |
|

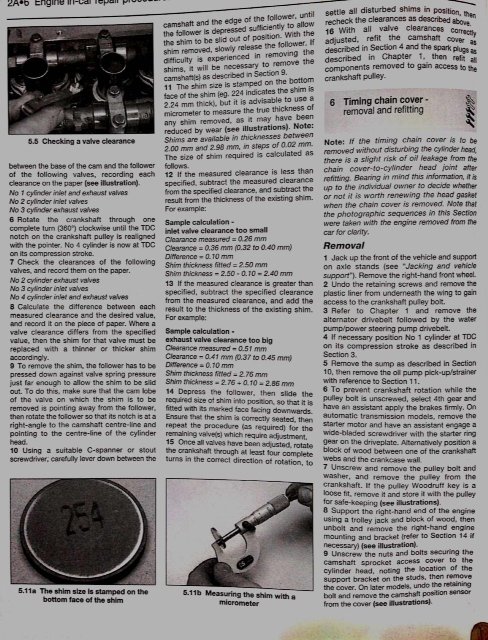

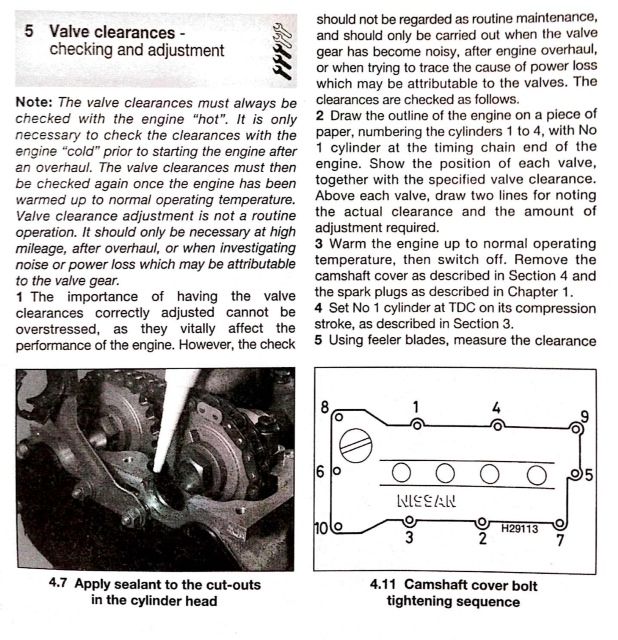

haynes manual will give you the info you need. Took some photos of the spec and procedure hopefully you can read it as the resolution is limited on the uploads.
|
||
Image Attached:
|
||
|
Danvillan » CMF Member Mulgoa Australia Member since: Posts: |
Re: valve clearences and how to |
Sat 02 Mar 2013 08:26:54 PM |
|
.
|
||
|
Danvillan » CMF Member Mulgoa Australia Member since: Posts: |
Re: valve clearences and how to |
Sat 02 Mar 2013 08:27:23 PM |
|
.
|
||
Image Attached:
|
||
|
Danvillan » CMF Member Mulgoa Australia Member since: Posts: |
Re: valve clearences and how to |
Sat 02 Mar 2013 08:28:04 PM |
|
Hopefully that helps you out.
|
||
Image Attached:
|
||
|
k11.3tc » CMF Member Spain Member since: Posts: |
Re: valve clearences and how to |
Sun 03 Mar 2013 04:08:21 AM |
|
THANKS !!! ILL POST FOTO,S WHEN ILL START WITH IT !!!
I THINK THE SHIMS ARE GOOD AVAILEBLE AT ANY CARPART STORE ? |
||
