injector gaskets |
Sun 03 Feb 2013 10:12:02 PM |
|
Wondering if anybody could post a pic of the gaskets needed for injectors on 1.0 for re-fitting, i didnt remove the injectors and struggling to find anybody who sells just the seals.
Thanks in advance |
||
|
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 01:33:07 AM |
|
the 2 rubber O rings on the injectors glen ? or the rubber grommets in the mani ?
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 04:15:47 AM |
|
yeah the O rings bud he didnt give them me back, so not to sure what they look like or where they go, got the grommets still in manifold
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 04:33:21 AM |
|

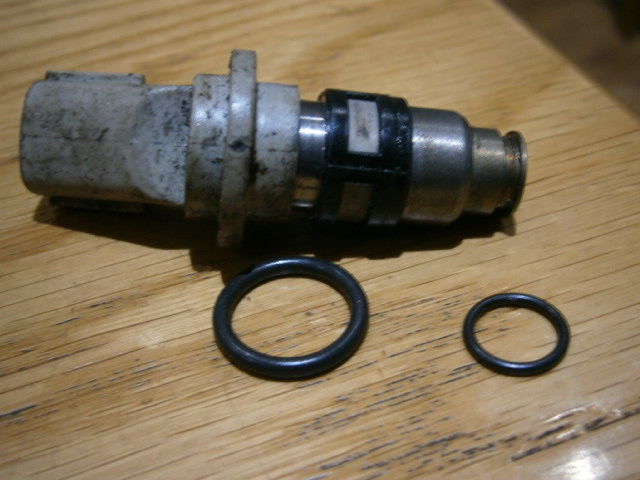

thats the 2 on the injector mate, were they cleaned then ?
|
||
Image Attached:
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 04:40:00 AM |
|
Cheers bud, you know where to get these? Na he left them in the rail as they where just didnt give me O rings back
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 04:45:42 AM |
|
strange eh !
i can send you some if you pm me mate |
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 05:05:25 AM |
|
Cheers will do, have you got a pick with them on the injector also, can see where 1 goes from you pick but not the other
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 05:07:28 AM |
|
i placed them opposite where they fit glen
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 05:29:56 AM |
|
Ok cheers
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 08:03:17 PM |
|
Did PM you bud dont know if it went through
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 08:49:47 PM |
|
yes mate, i emailed you, its probably in your junk mate
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Mon 04 Feb 2013 08:51:48 PM |
|
double post
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Thu 07 Feb 2013 07:29:11 AM |
|
Cheers Frank
Received today, get these back on Friday after picking up new valve cover bolts(strange design ) oil in and coolant in ready for the big start up, keep ya posted :) |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Thu 07 Feb 2013 07:48:12 AM |
|
nice one mate :)
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 02:59:08 AM |
|
Grrr sorry another question just wanna make sure im right
does the little gasket fit over the injector when it prutruding....mine seem to be in the cylinder still big gasket over the cylinder part? Cheers |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 04:30:25 AM |
|
they go here mate
|
||
Image Attached:
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 06:23:08 AM |
|
hmmm dont look like i needed them then, my own fault not being clear the injectors havnt been taken out so I'm assuming now these gaskets are already in and they just needed popping in the manifold :)
one thing i have done tho is put the bigger gasket over the cylinder part above where the smaller one goes, so this now sits on the manifold gasket |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 06:37:50 AM |
|
you,ve lost me glen ! can you post a pic ?
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 07:08:59 AM |
|
yeah sorry bud lose myself half the time

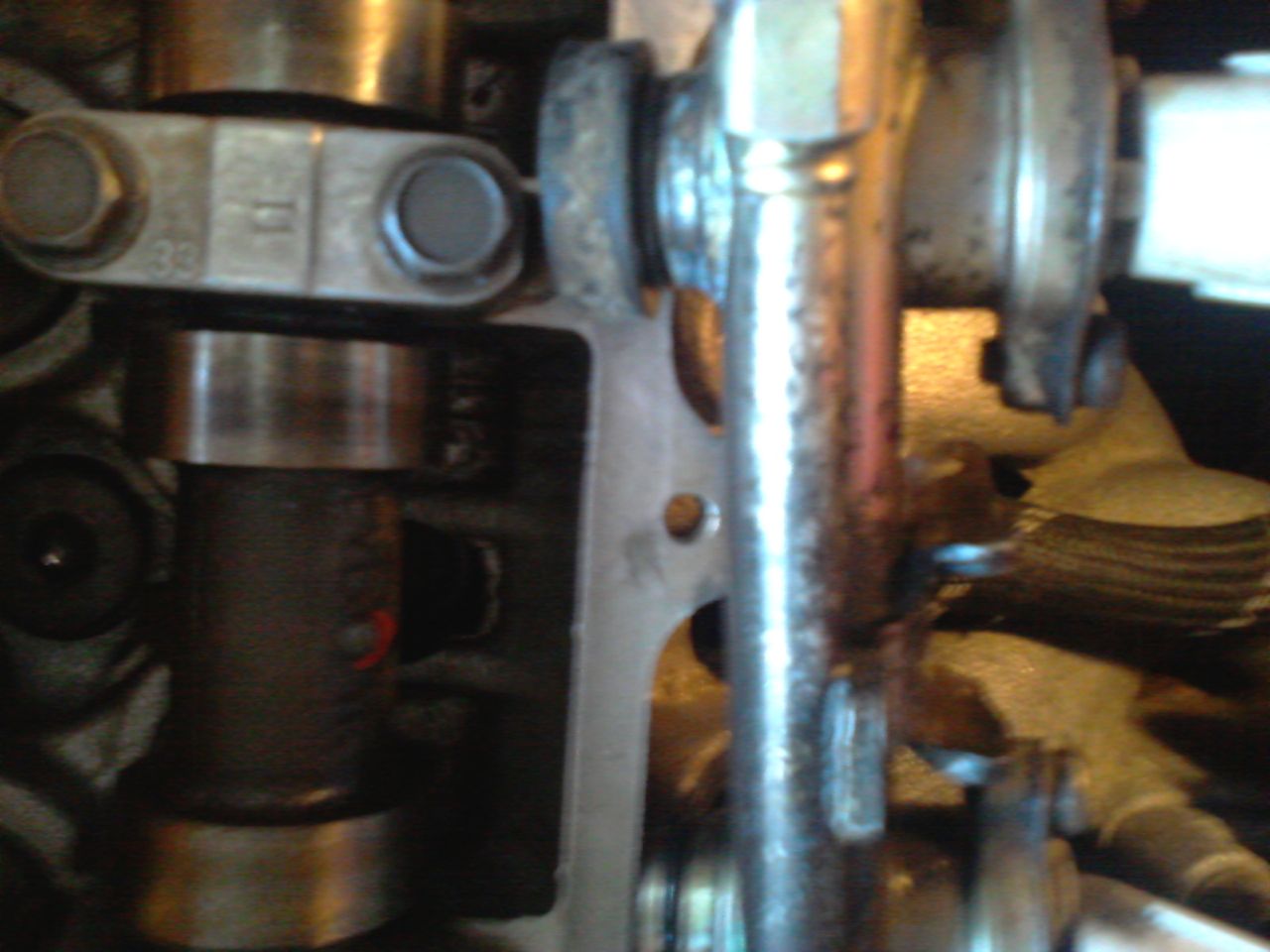

The injectors have not been removed from rail just rail from manifold- i thought there were then o-rings around the cylinder part of the injector then into manifold gasket. Pic is with doughnut gasket around it and hopfully you can see where i have put the o-ring you sent me (sits on top) |
||
Image Attached:
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 07:17:02 AM |
|
ahh, the old grommets usually seal ok mate, but the extra O ring wont hurt i guess :)
|
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 07:20:49 AM |
|
Yeah wont be lifting it up tho will it, not a spec gap for the injector nozzle is there?
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 07:28:21 AM |
|
Glenj WROTE: "Yeah wont be lifting it up tho will it, not a spec gap for the injector nozzle is there?" nah, the bolts will squash the O ring into the grommet eh |
||
|
Glenj » CMF Member manchester United Kingdom Member since: Posts: |
Re: injector gaskets |
Sat 09 Feb 2013 07:30:28 AM |
|
yeah it has really bud just checking ;)
Cheers Again |
||
