Turbo manifold build..

Dropping into liverpool exhaust tomorrow. They have their own laser cutting machine etc. And buying a Nissan Micra exhaust flange plate (the one that bolts up to the head) - a bargain at $50, and also picking up the rectangle 4-hole flange that bolts from the manifold onto the turbo.

That will give me the two sides of my manifold, then going to buy a bucket full of mild steel buttweld fittings from www.blackwoods.com.au in Fyshwick and start assembling my new manifold.

I'm going to do all the positioning and grinding to get a design that I'm really happy with. Then I think get my neighbour to do all the welding. He has a some huge MIG or TIG welder and does it for a living. I'll have to modify the dump pipe also to fit to the new position.

While I'm there, I'm going to pick up a whole pile of exhaust studs, a flange plate for the dump pipe to join the 3" section, and assorted junk. Can't wait. Should be pretty cool to see all their stock. Also hopefully the two flanges that bolt onto the compressor cover of the T28bb.

Thats great mate, Sounds like it's all coming together nicely.

You'll probably be more happy with your own design and get more satisfaction from it as well.

Hope to see the monster again real soon.

Dropped into Liverpool Exhaust today..

WOW What an impressive setup they have.
They employ bucket loads of people. Its just basically a huge manufacturing plant where they churn out everything.

This guy took me in the factory bit to find all the flanges I needed. Man they had like 3 micra exhaust flanges in stock just sitting there, they are the exact one like what was on my old manifold, i.e. with the screw stud expansion slots etc. Looks very good. $50. BARGAIN - wouldn't bother making one yourself. Also got the T28 exhaust input flange, and a couple of 2.5" and 3" 3-bolt 3-sided dump pipe flanges. Also got matching gaskets for everything. TOTAL cost $114. Over the moon with that. Manifold here we come.

Man, liverpool exhaust's factory is amazing though. You should have seen this huge rack thing with every single flange you've ever seen hanging off it. And about 20 in stock of everything. Even weird rare shit.

Highly recommended place. I'll always get all my turbo flanges and stuff from there now. MUCH cheaper than all the ripoff turbo and local exhaust places.

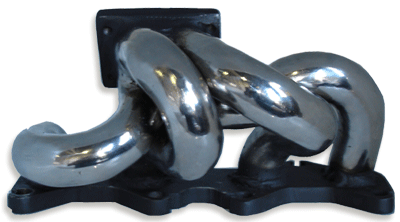

Hey Cisco, Just found a turbo manifold on www.tunedautomotive.com.au for a turbo Starlet may give you some ideas.

Hope it helps.

Tony

And heres a pic with the manifold on the car..

Awesome. looks pretty nice. Cheers Tony.

hey cisco

where did you got your manifold ?

i know custom made but where?

thx

My old manifold was built by City Custom Exhaust in Canberra.

thx cisco

nice one.im chopping up a custom chrome one from ebay made fr an sr20det, adding the flange plate and seeing what i can get out of that. be a wee while till its done though.

Rang up the exhaust place today.

His original comment was that it would be ready by the end of this week (tomorrow.

Told me today he hadn't even started yet.

that sux cisco...hope he pulls his finger out quicksmart,

Alex

typical isnt it

Yeah its pretty funny.

Modifying rare cars certainly develops your patience.

Allright some good progress.

Dropped in today, they've made some good progress.

The manifold is finished. Double-dump is outstanding and just awaiting on the alloy intercooler pipework to arrive so they can hook all that up aswell.

Definately going to be new year.. Everything shuts down now, i.e. HPC coating place aswell.

The manifold now mounts the turbo extremely offset to the left which is how I designed it to sit. They have got the turbo sitting in a great spot. As always with turbo manifolds on the micra, its always a compromise because of the lack of space. The rightmost runner is much longer than the other ones, but that's because of the offset mounting position. Shouldn't have any real noticable downsides in reality. Its smooth flowing, the 1st and 2nd runners are very direct which is excellent, the third one bends around to come back in at a decent angle (better than my last manifold had) and the 4th runner is long and smooth but still comes in at a good angle, just that its longer than all the others.

The whole thing is very solid and sturdy looking, so I'm very happy with the job.

Here's some dodgy pics of the raw manifold just after welding. They haven't finished all the die-grinding yet. After that's done, I'll get it HPC coated like the last manifold.

The whole thing is going to have a stainless steel heat shield covering it anyway, so it actually won't be visible.

The guy is nice and friendly, and also wished me a merry christmas. Great to see some nice customer service.

Getting there..

another..

another..

Designer cisco!

Very impressive. Looks like a production line item - like a factory Nissan/Autech design.

You should get a copywrite/patent on the design. :P

I'll try to get some better pictures when I go back and its all HPC coated.

I'm never 100% satisfied with manifolds. There are always compromises to achieve everything when you have the tight space that the micra has.

But taking everything into consideration, I'm happy with the result.

Now you're just being modest!

Not 100% happy? You are a hard man to please Cisco.
Can't wait to see the end result of your new set up.

No no! I am very happy with this manifold.

Just that I don't think you can ever make the perfect manifold in a tight space - in general.

Nice one!
What will the cost of the manifold be?

Cheers
Are

They quoted between $400-600. Pretty good for Aus prices. My last one was a ripoff, and not as good as this one.

HPC coating will be extra ontop.

WOW!
Are they making a jig for it so it can be reproduced..?

Bet there would be quite a few interested at that price!

Cheers
Are

Hmm I don't think so, but will advise what the final price turns out to be.

hi did u get a final price or pictures of this manifold?

thx

Cisco can you help getting a turbo Manifold ?

spewing that all the pics don't show up!!

Wow! $400-$600... They do quality work too. I have used Liverpool Exhaust for many years.
I purchased a numbetr of flange plates and stove pipe mandrels myself, last week. I have since welded up one manifold with another coming hopefully tomorrow.
Very interested in you design Cisco, but the pics didn't work for me???

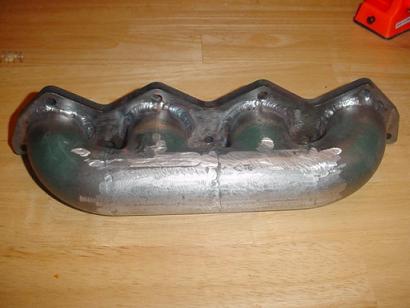

mine was made out of those steampipe/buttweld things as well...heres some pics if its of any help.




heres what it looked like once mounted

thanks for the pics aaron!

Air cond needs a different manifold design due to the lack of room. The turbo sits higher and closer to the manifold. This the same as the basic log style manifold design I am making at the moment, just with different exhaust flange.

looks the goods JKL - got no air con personally.... don't know how long i'll last without it, will see how it goes in summer :D

Will contact you very soon smidge..
Didnt get much done for my own projects today, have been real busy in the workshop. Got headgaskets, clutches and engine conversions all over the place.

hey jkl i am keen as to see how this turns out.... are you making any extras?? and if so how much for one?

Im making a few but its slow... I have a lot of work on and this is my project stuff.
Smidge is next in line at this stage and I hope to have a sample for him by early next week. I will be selling them to interested Micra members a fair bit cheaper than other suppliers, but buyers just have to be patient.
Keep an eye out and ask again next week if you like.
Cheers

i can wait as long as it takes mate.... will do

good on ya JKL! looking forward to it, take your time

ya nice manifold i need to find a place that will make me one over here i ant got the resources to build my own. :-)

Surely there would be stack of "top end" exhaust shops over there. Check out a few local fast 4 type mags and you would have to find some good shops...

I did my manifold like that, JKL, just watch the clearance of the left most stack, since on mine it is a little too close to the alternator...... You have to make another alternator mount......

Hey Smidge...
The blank Turbo Log Manifolds are finished. Will post a pic tomorrow and give you first option. There's a couple of other guys interested also.
Can do them for $300
CG13DE 12ml Exhaust Flange and 1-1/4" steam pipe mandrels. Heavy guage welding on all seams. Internal die ground and port matched.
Manifolds are high and tight, keeping Turbo mounted closer to engine than radiator and fans, suitable for A/C engines also.

Pic's tomorrow.

nice work JKL looking forward to it!

Hit me with a pic very interested

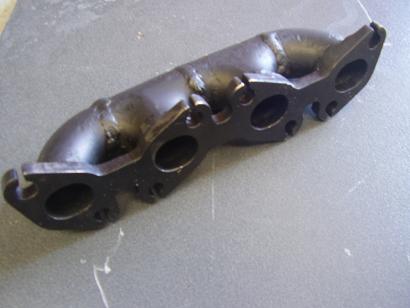

This is the "JKL" manifold...

And...

Another...

that is a great looking manifold... i will let you know when i have the funds for one

No probs..
Thanks, they came up very well.
All seams have been chamfered for better weld penetration and the flange plate has been held flat in a jig, to aviod flange warping from the heat.
I have 2 available at the moment.
Looking into making up Extractors to suit A/C applications over the next few days.

Hey JKL,

You're from NSW as well...

was wondering how much one of these manifolds would set me back if you were to make me one?

As I am looking at putting a T22 on my micra nd still deciding whether or not to run a cooler or not?

nearly full five year old thread dig fail

Holy thread revival batman!
