Turbo Positioning

 Sun 26 Jul 2009 01:23:06 AM
I'm struggling to find a suitable location for the turbo in the engine bay, the turbo is around 7inches wide from compresor inlet to turbine outlet.

If it's hung where the cat is there'll be next to no room between the alternator and the engine mount.

So I'm looking at top mounting, however, how much clearance is there to the bonnet?
fred
» CMF Member

Murwillumbah
Australia

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Highly frequent posterHighly frequent posterHighly frequent posterHighly frequent posterHighly frequent poster

Re: Turbo Positioning

 Mon 27 Jul 2009 05:50:12 PM
check turbos top mount and compare to family hack (in the force micras on the title tag) there is quite a bit of head space infront of the motor, like a small turbos meant to be there..... things to watch thou are clearences to raditor pipes and cooling fan vanes
GTRHOLIC
» CMF Member

BRISBANE
Australia

Member since:
Piece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF FurniturePiece of CMF Furniture

Posts:
Regular forum userRegular forum userRegular forum userRegular forum userRegular forum user

Re: Turbo Positioning

 Tue 28 Jul 2009 11:23:33 AM

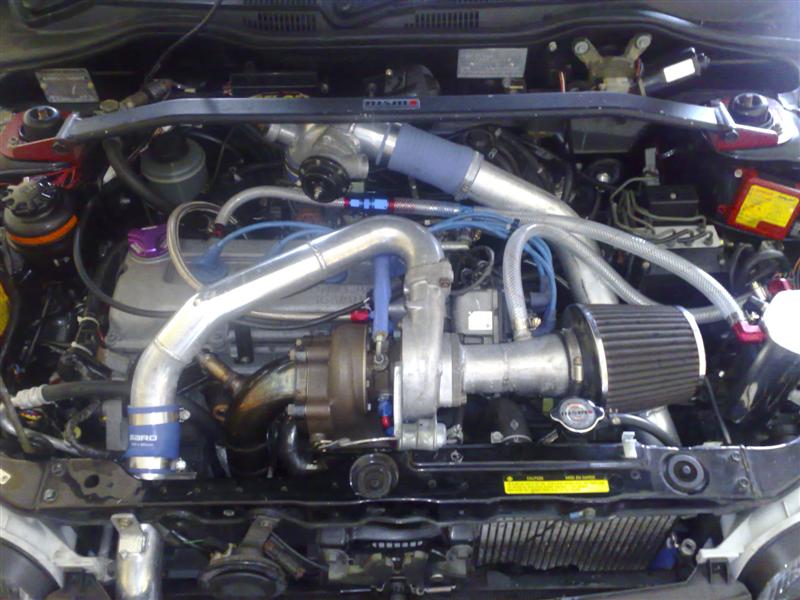

top mount would be better. i can run aircon too.


Image Attached:
