Pod or Panel or Foam?!?! |
Mon 20 Mar 2006 07:30:24 PM |
Looking for a cheap boost in sound and air breathing for my 1.0litre march. What's the better pod or panel or foam etc etc. I've had different suggestions and it's confusing me.
|
||
|
cisco » CMF Member Canberra Australia Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Mon 20 Mar 2006 07:35:57 PM |
If you want to boost sound, just remove the factory intake pipe/resonator unit.
Not much real world noticable difference between various filter types, but if you are serious about building a cold air intake, read some of the Technical Articles in the Information section. |
||
Image Attached:![]() |
LWC » CMF Member Canberra Australia Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Tue 21 Mar 2006 08:55:11 PM |
There's a detailed test on oiled foam filters versus factory versus aftermarket filters. Does anyone want the link (it's on work's computer.)
The oiled foam types flow more air but let more dust through = more engine wear. Standard manufacturer filters stop heaps more dust but have a higher pressure drop and hence flow less air. If you want more air and don't mind the engine wear use an oiled foam and oil it properly (messy job I can tell you). Personally I'd buy a manufacturers filter from a bigger engine and fit it to my 4 cylinder, flow more air and stop more dust. Best of both worlds really. LWC. |
cisco » CMF Member Canberra Australia Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Tue 21 Mar 2006 09:03:38 PM |
At the Melbourne micra meet dyno day once we swapped the air filter on the white super s and did two dyno runs to compare.
First we used a factory paper filter, then we replaced that with an oiled cotton/mesh K&N performance filter. Dyno results were IDENTICAL ! :) This did not cover foam, but I was pretty surprised even with the K&N not to be any different. After that day, I swore I wouldn't bother buying any more of those K&N filters that fit in the factory air box. I think LWC has a great idea, which is basically install a larger surface area big car filter and/or airbox, and yeah best of both worlds. |
Yom » CMF Member Brisbane Australia Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Tue 21 Mar 2006 09:14:15 PM |
I'm working on doing exactly that right now!!
(fitting a larger car's airbox to the micra) |
||
Image Attached:![]() |
LWC » CMF Member Canberra Australia Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Wed 22 Mar 2006 08:13:01 AM |

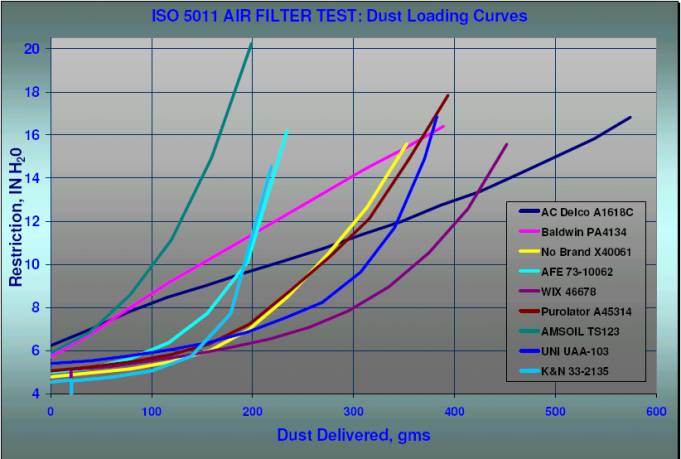

The link to the big filter test is http://home.usadatanet.net/~jbplock/ISO5011/SPICER.htm
Compared to the AC, the K&N “plugged up” nearly 3 times faster, passed 18 times more dirt and captured 37% less dirt. |
||
Image Attached:![]() |
S2000 » CMF Member Whangarei New Zealand Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Thu 23 Mar 2006 02:50:48 PM |
What airboxes will fit on the march?? My mate just took his one from his s15 out. Will that fit?? Or the other option?? A bigger filter?? My mates s15 sounds soo much different with just the removal of the factory thing and will the pod filter in. I suppose a 1.0litre will not be affected greatly from it?? Thanks for the help so far.
|
Toma » CMF Member Perth Australia Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Thu 23 Mar 2006 03:37:43 PM |
Cisco,
Any chance of putting the new fairmonts airbox onto the micra? :D Big capacity and cheap air filters... <3 that |
S2000 » CMF Member Whangarei New Zealand Member since: ![]() ![]() ![]() ![]() ![]() Posts: ![]() ![]() ![]() ![]() ![]() |
Re: Pod or Panel or Foam?!?! |
Fri 24 Mar 2006 04:25:56 PM |
Around what size is the inlet diameter of a 1.0 litre march??
|
||
Image Attached:![]() |
