Oil out turbine |
Thu 16 Mar 2006 08:11:04 AM |
|
I have mounted a turbine garret 43 on mine micra 1.0 but I do not find one satisfying solution in order to connect the tube of return of the oil: the oil in pressure I have not had difficulty to carry it outside from the motor, but someone knows to advise to me where to connect the tube of re-enters? Thanks
|
||
|
|
||
|
evade » CMF Member Melbourne Australia Member since: Posts: |
Re: Oil out turbine |
Thu 16 Mar 2006 08:40:29 AM |
|
top of the oil sump. you'll have to tap it yourself though, theres no standard place you can plumb it back into
|
||
|
SavO » CMF Member Magenta Italy Member since: Posts: |
Re: Oil out turbine |
Fri 17 Mar 2006 08:49:13 AM |
|
You could kindly send some photo to me in order to render the job better?
Thx |
||
|
SavO » CMF Member Magenta Italy Member since: Posts: |
Re: Oil out turbine |
Mon 20 Mar 2006 08:53:06 PM |
|

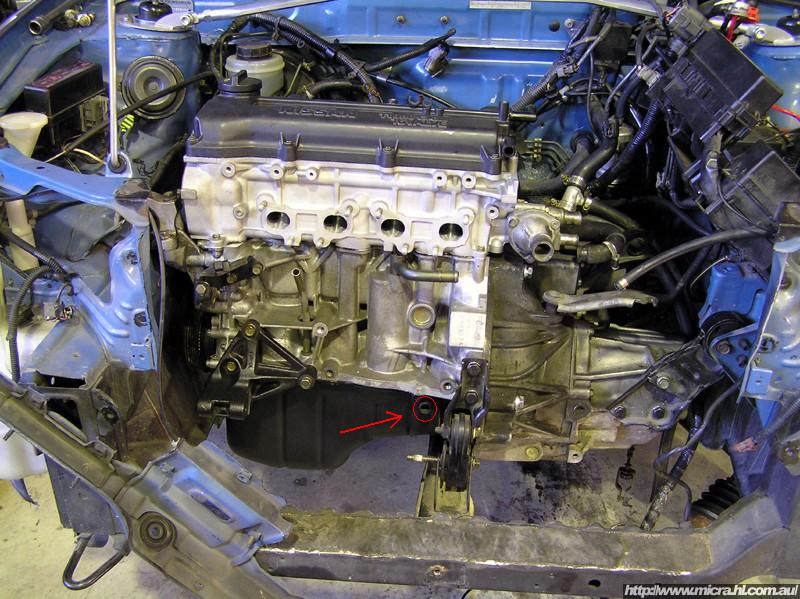

It's right to pierce in the point marked on the image?
Please, answer me... Thanks |
||
Image Attached:
|
||
|
White Knight » CMF Member Perth Australia Member since: Posts: |
Re: Oil out turbine |
Tue 21 Mar 2006 07:46:12 AM |
|
Looks okay to me.
|
||
Image Attached:
|
||
|
cisco » CMF Member Canberra Australia Member since: Posts: |
Re: Oil out turbine |
Tue 21 Mar 2006 05:20:27 PM |
|
Hi there,
Sorry I didn't see your message, I would have attached an image. Yes, this is the correct place to tap in an oil return fitting. Good luck! |
||
|
SavO » CMF Member Magenta Italy Member since: Posts: |
Re: Oil out turbine |
Wed 22 Mar 2006 12:18:13 AM |
|
I love this forum :*
|
||
